Comfortable Dynamic Back Swivel Home Ergonomic Chair

Model No.: SM006E-A-G

Supply Ability: 50000pcs / Month

Start Port: Shenzhen/Guangzhou

Delivery Time: 5 Days for sample, 45 days for mass order

Payment: T/T, L/C, western union, moneygram, etc.

Warranty: 5 years warranty

Share:

DESIGN CONCEPT

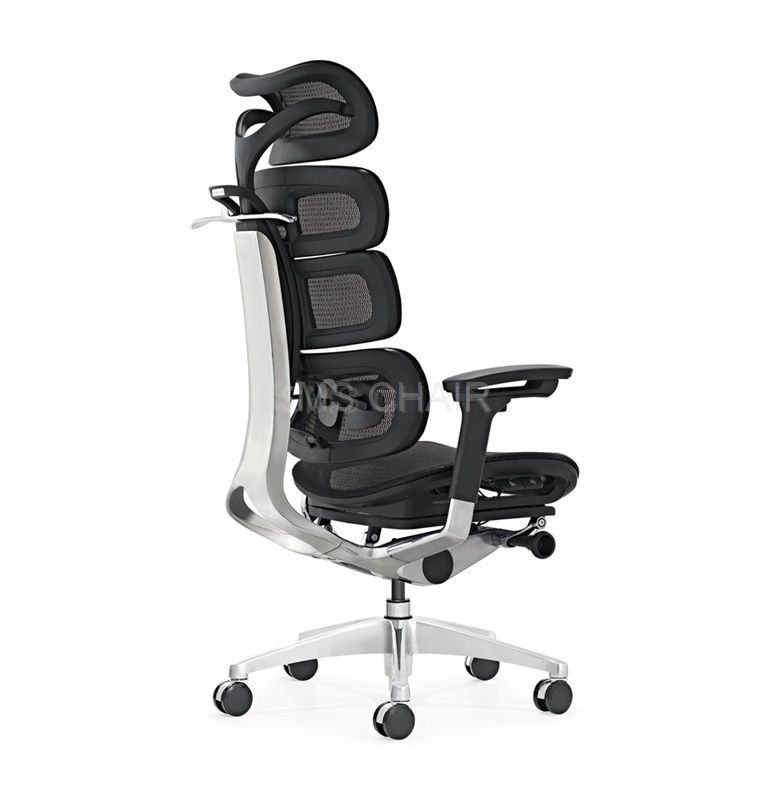

Comfortable Dynamic Back Swivel Home Ergonomic Chair ——

Introduce of seat and back

The SM006 ergonomic chair adopts "dynamic wave" back frame design. The back pad and lumbar support have different curvatures to achieve effective support for the waist and back. The upper shoulder can adjusted automatically, relieve shoulder fatigue.


High Back Swivel Manager Mesh Office Chairs

Comfortable Dynamic Back Swivel Home Ergonomic Chair ——

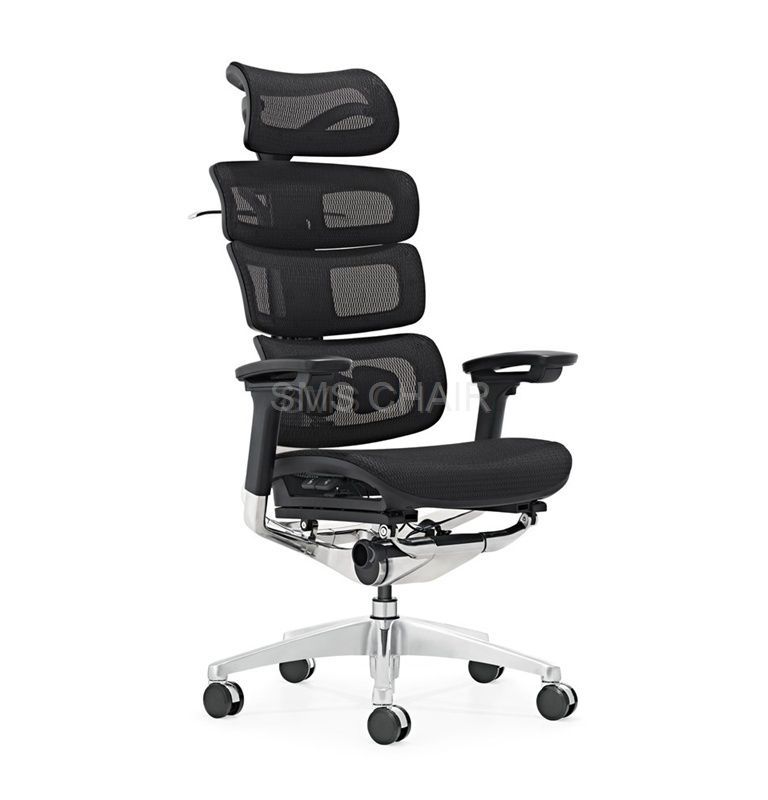

Automatic flexible lumbar support

Automatic flexible lumbar support

From the design of Lumbar support:

The ergonomic chair refers to the Automatic flexible lumbar support under different use environments according to users of different body types to achieve the multi-point support of the entire back of the chair to the human body. (In a casual environment, the Automatic flexible lumbar support can make the user's abdomen sink and the waist can be independently supported, allowing the user to achieve the most relaxed status and relieve fatigue.)

Comfortable Dynamic Back Swivel Home Ergonomic Chair ——

Rear arc design, Front high point design

Rear arc design, Front high point design

From the design of the seat:

An ergonomic chair refers to the chair seat that allows the user to reach a full seat at any time in a natural status. During the backward process, the user's buttocks are not easy to slide forward and the cotton before sitting does not form a compression effect on the thighs, so it is indispensable.

FUNCTIONS

The height adjustment of the 2D headrest (5 positions adjustment interval 6cm) meets the needs of users in different heights, and 30 degrees' angle adjustment meets the needs of users in different use environments.

2D HEADREST

The back can be adjustable up&down

(4 positions range 5cm) This function can meet the needs of users of different heights.

Back

Automatic flexible lumbar support (Rebound angle 30 degrees)

This function can meet the needs of users of different figures.

Lumbar Support

The seat sliding function (5cm) can meet the needs of users of different heights in different use environments.

Seat

The 4D armrests can slide front&back (4cm), up&down(7cm), angles adjustment, and the armrest can slide left&right (2.5cm) in parallel to meet the needs of users of different heights to achieve the best arm support status under different conditions of use.

4D ARMREST

Self patent moulded alumunium wire-controlled chassis, 4-positions tilt & lock reclining function, reclining elasticity adjustment function, and seat height lifting function can meet the needs of users of different heights and body types to achieve the best use status in different use environments.

THE CHASSIS

MATERIALS

Comfortable Dynamic Back Swivel Home Ergonomic Chair

The headrest, back, lumbar support, seat use High elasticity mesh, This mesh is Polyester (60%Elastomer, 40%fiber)is fire proofing and damage prevention effect, The advantage is strong stability, good elasticity, effective flame retardancy, good ventilation and heat dissipation characteristics, comfortable and health care, and can prevent the growth of bacteria during the use of the chair.


The back frame, headrest frame and seat frame are make with new materials nylon PA+glass fiber, The bottom frame is made with PP+glass fiber, PP lumbar support; (80%nylon+20%glass fiber)


The handrests are make with new materials nylon PA+glass fiber, Aluminim armrest support, PU arm pad, handrest has passed the US BIFMA test.


The seat front foam is Environmentally fire proofing PU mould foram


Samhongsa gaslift TUV-4 gaslift (passed US BIFMA and European SGS test)


Passed the US BIFMA test patent 350 aluminum alloy base (passed (1136KG) BIFAM test standard)


High-quality 65PU Castors( load-bearing 225 pounds, 2000 obstacle test, 98, 000 cycle test)


The chassis, armrest support, back frame, seat base and legs are polished aluminum.

PRODUCT PARAMENTERS

Mesh Ergonomic Office Work Chair For Long Working Hours

Comfortable Dynamic Back Swivel Home Ergonomic Chair
Item no.SM006E-A-G
BrandSHUNMAS, OEM
Package1 PCS/CTN
Packing size770x570x680 MM
Net weight31KG
Gross weight33KG
CBM0.3 M3
Loadability231PCS/40HQ
OriginFOSHAN, CHINA
Features

* 2D Headrest with height & angel adjustment

* Height adjustable backrest

* Dynamic shoulder support and 3 position adjustable lumbar support

* Seat depth adjustment

* 4D Armrest with soft PU armpad and Aluminium support

* Explosion-proof Aluminium chassis with Back tilting & locking mechanism in multiple position.

* BIFMA passed class 4 gaslift

* 350mm strong alumimium base

* 65mm Chromed PU nylon silent castors

* BIFMA PASSED

Test Report and Patent

Test and RequirementBIFMA TEST(MAIN)STANDARDNATIONAL STANDARD(MAIN)TEST STANDARD
Legs(Base)Durabitity test

Base pressure: 11125N

Continued: 1Minute

Cycles: 2 times

Base pressure: 7560N

Continued: 1Minute

Cycles: 2times

Amrest Strength testVertical

Functional Load: 890N

Continued: 1Minute

Destructive Load: 1335N

Continued: 1Minute

Functional Load: 750N

Continued: 1Minute

Amrest Strength testHorizontal

Functional Load: 445N

Continued: 1Minute

Destructive Load: 668N

Continued: 1Minute

Functional Load: 445N

Continued: 1Minute

Seat Cushion(Seat)Impact Test

Functional Impact: 102KGFree Fall

Height: 152MM

Impact: 102KGFree Fall

Height: 152MM

Destructive Impact: 136KGFree Fall

Height: 152MM

Seat Cushion(Seat)Durability Test

Impact: 57KGFree Fall

Height: 50MM

Times: 100000

Impact: 57KG

Free Fall

Height: 30MM

Times: 100000

Tilting Mechanism Endurance Test

Load: 102KG

Pull: 45KG

Times: 300000

Times: 300000
Tilting BackrestEndurance Test

Functional Test: 90.7KG

Continued: More than 1Minute

Destructive Test: 136KG

Continued: More than 1Minute

N
APPLICATIONS

Mesh Ergonomic Office Work Chair For Long Working Hours

MESH OPTIONS
FAQS
  • Q: Are you a factory or trading Company?

    A: We are a factory, can accept OEM, produce all kinds of office seatings.

  • Q: What is your MOQ?

    A: We don’s requested MOQ for each model ,but more quantity cost less.

  • Q: Can u put our logo on the product/ cartons?

    A: Yes. You could send your fabric logo to us, and then we can put your logo on chairs. Additionally, we can print your logo on cartons.

  • Q: How to place the order?

    A: Just send enquiry to us of your request and then We will quote the price with your details. After checking the unit price & order details, payment terms and delivery terms, we'll make proforma invoice for you to place the order and pay.

  • Q: What is your Payment terms?

    A: TT: 30% advance payment, 70% balance before loading. Others trade term are negotiable, Such as LC, Alipay, ect.

  • Q: Sample time and charges?

    A: Sample is available. The price is 10% more than bulk order price. About 5 days after receiving the sample payment.

  • Q: What is the production leading time?

    A: 1-4 weeks, it depend on model number and quantity.

  • Q: What is the warranty?

    A: 3-5 Years according to model, and the replacement will be ship out with next order for free.
